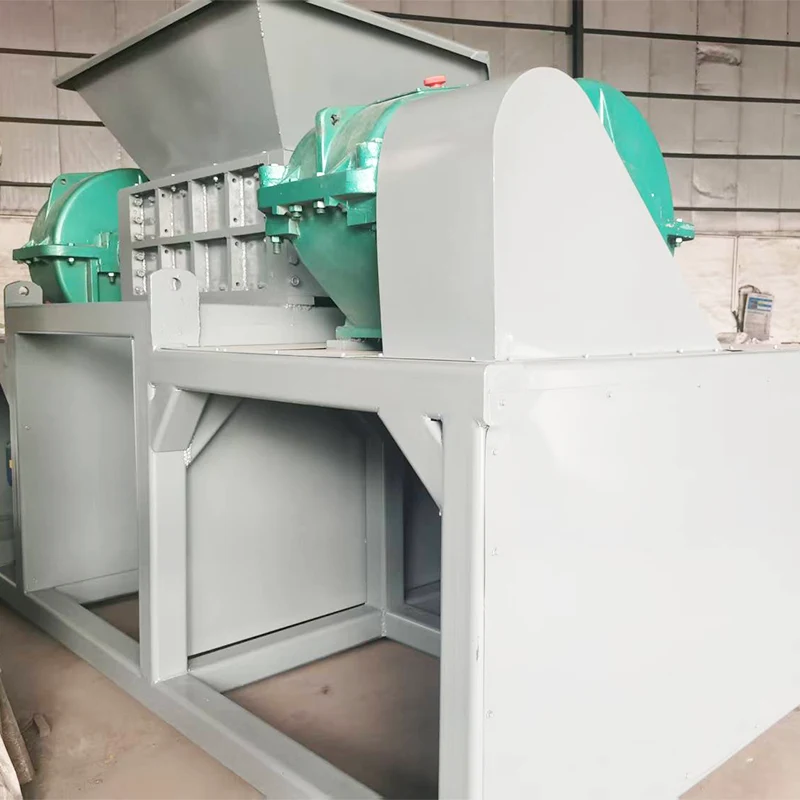

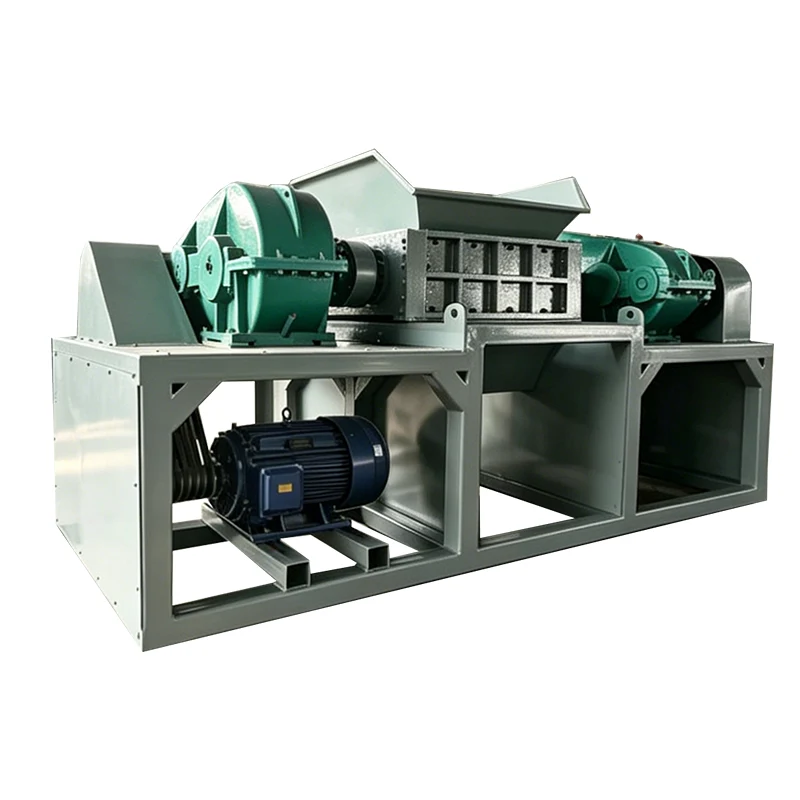

The Industrial Waste Tire Shredder Machine uses dual-shaft or four-shaft low-speed, high-torque shearing technology. Counter-rotating blade shafts create continuous cutting, tearing, and extrusion forces that efficiently shred whole tires without manual pre-cutting.
The machine is designed for direct feeding of tires up to 1200mm diameter, significantly improving processing efficiency while reducing labor input.
|
Model |
Shaft Configuration |
Motor Power |
Processing Capacity |
Tire Feed Size |
Output Size |
|
XZ-800 |
Dual Shaft |
45–55kW |
1–2 T/H |
≤800mm |
80–150mm |
|
XZ-1000 |
Dual Shaft |
75–90kW |
2–4 T/H |
≤1000mm |
50–120mm |
|
XZ-1200 |
Dual Shaft |
90–132kW |
4–6 T/H |
≤1200mm |
50–100mm |
|
XZ-1500 |
Four Shaft |
160–220kW |
6–8 T/H |
≤1500mm |
30–80mm |
• Blade Material: Cr12MoV alloy steel
• Blade Hardness: HRC60–63
• Shaft Rotation Speed: 12–18 RPM
• PLC Automatic Control
• Overload Reverse Protection
• Intelligent Restart Function
• Optional Magnetic Separation System
• Conveyor System Integration Available
Xinzhe Blades manufactures all blades using precision CNC machining and integrated heat treatment technology. This improves wear resistance and impact strength while allowing repeated sharpening.
The machine handles complete tires without pre-cutting, reducing labor costs and improving operational efficiency.
The welded heavy-duty frame undergoes stress-relief annealing to eliminate deformation during long-term industrial use.
Output particle size can be adjusted from 50mm to 150mm based on downstream recycling requirements.
The control system detects overload automatically, reverses blade rotation when blockage occurs, and resumes operation after clearing.
The Industrial Waste Tire Shredder Machine is widely used in:
• Waste tire recycling plants
• Rubber granule production lines
• Tire pyrolysis pretreatment
• Reclaimed rubber processing
• Industrial solid waste recycling centers
Yes. Models above XZ-1000 are designed for direct truck tire shredding.
Under normal operation, blade life typically reaches 8–14 months.
Yes. Blade spacing and cutter structure can be customized.
Yes. We offer full line solutions including conveyors, magnetic separators, dust removal systems, and downstream processing integration.
For buyers looking for a dependable Industrial Waste Tire Shredder Machine supplier, Xinzhe Blades provides a strong competitive advantage through precision blade manufacturing expertise, strict quality control, and flexible customization. Our focus on durability, performance, and fast delivery makes us a trusted partner for industrial recycling projects worldwide.
