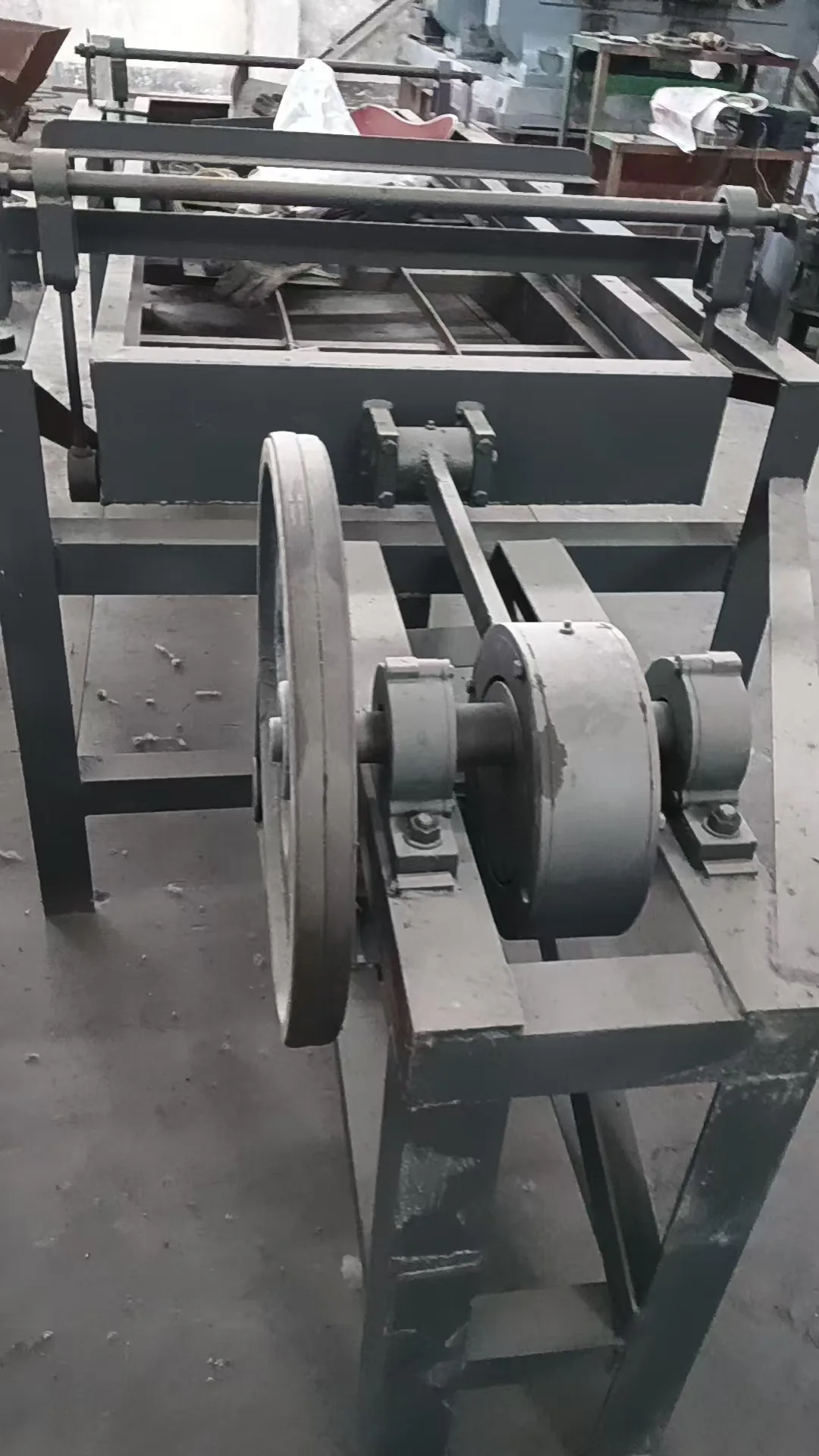

Universal Joint Driven Large-Amplitude Vibrating Screen

Xinzhe Blades is a professional manufacturer, supplier, and factory in China specializing in industrial recycling equipment, screening systems, and precision metal processing solutions.

The Universal Joint Driven Large-Amplitude Vibrating Screen is designed for efficient grading, separation, and impurity removal of recycled materials. Unlike conventional vibrating screens, this machine utilizes a universal joint eccentric linkage transmission system that generates large-amplitude reciprocating movement across the screening surface.

This innovative motion improves material stratification, reduces screen clogging, and enhances screening efficiency, especially when processing sticky, wet, or irregularly shaped materials.

The equipment is widely used in:

· Waste tire recycling plants

· Scrap steel processing facilities

· Oil drum recycling lines

· Recycled plastic processing plants

· Slag and aggregate classification systems

Why Choose Xinzhe Blades Universal Joint Vibrating Screens?

Large-Amplitude Universal Joint Transmission

Traditional vibrating screens often struggle with sticky or wet materials due to limited vibration amplitude.

The Xinzhe Blades screening system adopts a heavy-duty universal joint linkage structure that produces wider screening movement and stronger material throwing action.

Benefits include:

· Up to 90% reduction in screen clogging

· Improved screening accuracy

· Better handling of oily or damp materials

· Higher throughput efficiency

· Stable long-term operation

Modular Screen Deck Design

The screen chamber features a modular layered structure.

Different mesh sizes can be installed according to production requirements, allowing one machine to separate materials into multiple particle sizes simultaneously.

Capabilities include:

· 1–3 screening layers available

· 3–4 material grades in a single pass

· Fast screen replacement

· Flexible production adjustment

Heavy-Duty Reinforced Structure

The machine frame is manufactured from thick national-standard channel steel and welded into an integrated structure.

Advantages include:

· Excellent vibration resistance

· Long service life

· Continuous operation capability

· Reduced maintenance requirements

· Stable screening performance under heavy loads

Low Energy Consumption

The system is powered by:

· National-standard electric motor

· Eccentric wheel mechanism

· Universal joint transmission assembly

Compared with conventional heavy vibrating screens, energy consumption is significantly lower while maintaining high screening efficiency.

Perfect Integration into Recycling Production Lines

Universal Joint Driven Large-Amplitude Vibrating Screen can be directly connected with:

· Tire shredders

· Tire granulators

· Oil drum cutting machines

· Scrap metal flattening machines

· Plastic crushing systems

Creating a fully automated production flow from crushing to final material grading.

Technical Specifications

Typical Applications

Tire Recycling Plants

Separates rubber granules, steel wire, oversized rubber chunks, and finished particles after tire crushing.

Oil Drum Recycling Lines

Classifies flattened and cut drum sheet fragments into usable material and scrap residue.

Metal & Plastic Recycling

Removes impurities and grades recycled feedstock for downstream processing.

Customer Success Story

A rubber granule factory in Binzhou, Shandong installed two Xinzhe Blades large-amplitude screens after tire crushing operations.

Results:

·  Higher product purity.

·  Reduced screen clogging.

·  Improved production efficiency.

·  Increased profit per ton of finished granules.

Manufacturing Strength of Xinzhe Blades

As an experienced Universal Joint Driven Large-Amplitude Vibrating Screen manufacturer and supplier in China, Xinzhe Blades combines precision manufacturing expertise with strict quality management.

Our production facility operates under an integrated:

R&D + Manufacturing + Quality Control System

Key capabilities include:

· Precision CNC machining

· Industrial fabrication workshops

· Heat treatment processes

· Assembly and testing facilities

The company has accumulated multiple patents and continues to invest in equipment innovation and process optimization.

Quality Assurance

Every machine undergoes comprehensive testing before shipment.

Inspection procedures include:

· 4-hour no-load operation test

· Universal joint transmission inspection

· Frame stability verification

· Screening performance evaluation

Each unit is supplied with:

· Factory inspection certificate

· Quality control records

· Operating documentation

Why Buyers Choose Xinzhe Blades?

Customization Options

As a professional factory in China, Xinzhe Blades offers custom engineering services.

Available options:

·  Longer screen body.

·  Additional screen layers.

·  Special mesh apertures.

·  Dust-proof enclosure.

·  Customized discharge outlets.

Packaging & Delivery

Packaging

·  Wooden protection cases for motors and universal joint parts.

·  Rust-proof wrapping film.

·  Reinforced transport protection.

Shipping

·  Truckload and less-than-truckload options.

·  Direct delivery to customer facilities where available.

Lead Time

·  Standard models: 2–3 days.

·  Customized models: 7–10 working days.

After-Sales Support

·  Installation manuals and setup videos.

·  Remote one-on-one technical guidance.

·  Operator training for screen replacement and maintenance.

·  Lifetime technical consultation.·  On-site commissioning support for large orders.

Frequently Asked Questions

Can it screen wet or oily rubber materials?

Yes. The large-amplitude universal joint motion keeps material moving and significantly reduces screen blinding, making it suitable for oily and moist recycled materials.

How easy is screen replacement?

The modular screen frame design allows a single operator to replace screens in approximately 30 minutes.

Can the machine produce multiple grades in one pass?

Yes. Multi-layer configurations with independent discharge outlets can separate several particle sizes simultaneously.

Is noise and power consumption high?

No. The universal joint drive operates more smoothly than many heavy vibrating screens and uses a relatively small motor, reducing operating costs.

What is the price of a large-amplitude screening machine?

Pricing depends on screen layers, dimensions, capacity, and customization requirements.

Contact Xinzhe Blades for a tailored quotation.Are spare parts readily available?Yes. We stock universal joints, bearings, screens, and other common replacement parts for fast shipment.
