Xinzhe Blades is a professional China manufacturer and factory of precision Internal Gear solutions designed for high-load and compact transmission systems. Developed for applications where installation space is limited but transmission accuracy is critical, our Internal Gear products are engineered using advanced gear shaping, grinding, and carburizing technology to ensure precise meshing performance and extended operational life.
As an experienced precision metal parts supplier, Xinzhe Blades provides both standard and custom Internal Gear production for global OEM customers, equipment manufacturers, and industrial transmission system integrators.
• Planetary gearbox systems
• Precision reducers
• RV reducers
• Harmonic drive systems
• Robotics joints
• Automotive transmission systems
• Semiconductor equipment
• Medical machinery
• Aerospace precision drive assemblies

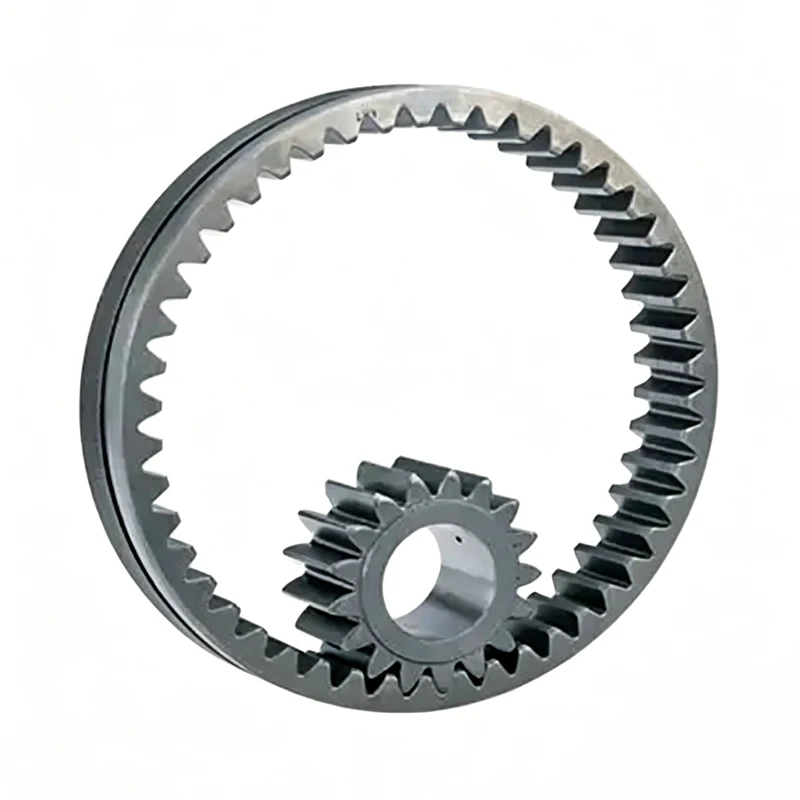

Internal Gear is a precision transmission component with teeth machined on the inner circumference of a ring-shaped gear body. It meshes with external gears to transmit torque while maintaining compact center distance.
Compared with conventional external gears, Internal Gear offers:
• More compact structural design
• Higher space utilization
• Stable multi-tooth meshing
• Lower vibration and noise
• Higher transmission efficiency
• Larger achievable reduction ratios
|
Parameter |
Standard Specification |
|
Product Name |
Internal Gear |
|
Brand |
Xinzhe Blades |
|
Material Options |
20CrMnTi / 40Cr / 42CrMo / Alloy Steel |
|
Inner Diameter |
80–400 mm |
|
Module Range |
1.5–8 mm |
|
Number of Teeth |
20–80 Teeth |
|
Gear Width |
10–60 mm |
|
Accuracy Grade |
GB/T 10095 Grade 7 / Grade 6 Optional |
|
Pressure Angle |
20° |
|
Addendum Coefficient |
1.0 |
|
Clearance Coefficient |
0.25 |
|
Surface Roughness |
Ra≤0.8μm |
|
Heat Treatment |
Carburizing / High-Frequency Quenching |
|
Surface Hardness |
HRC58–62 |
|
Transmission Efficiency |
Up to 95% |
|
Customization |
Available |
Our China factory adopts strict precision manufacturing standards:
Premium alloy steel with verified chemical composition
High-accuracy CNC gear slotting ensures tooth profile consistency
Improves tooth surface finish and reduces meshing error
Enhances surface hardness and fatigue resistance
Minimizes internal stress and improves dimensional stability
Runout, tooth profile, hardness, and concentricity testing
Internal tooth arrangement reduces installation space by over 30%, ideal for miniaturized equipment.
Gear accuracy reaches Grade 6–7, ensuring smooth rotation and constant speed ratio.
Hardened tooth surfaces provide strong resistance to wear, pitting, and tooth breakage.
Multiple tooth contact reduces friction loss and improves transmission efficiency.
Compared with conventional gears, service life is extended by more than 40%.
As an experienced Internal Gear supplier, Xinzhe Blades supports complete non-standard customization.
Yes. Our factory provides full customization for inner diameter, module, tooth number, width, heat treatment, and precision grade according to your drawings or technical parameters.
Our products are widely supplied to robotics, automotive, industrial automation, reducer manufacturing, aerospace, and precision equipment industries.
We use CNC precision shaping, gear grinding, and strict quality inspection including runout testing and tooth profile verification.
Yes. Sample production is available for testing and assembly verification.
As a professional China Internal Gear manufacturer, Xinzhe Blades combines precision machining expertise, stable quality control, and flexible production capability.
We offer:
• Direct factory pricing
• Fast delivery
• OEM/ODM support
• Strict quality inspection
• Technical drawing assistance
• Responsive after-sales support
Whether you need standard precision Internal Gear components or fully customized transmission solutions, Xinzhe Blades is your reliable long-term manufacturing partner in China.
